Medium-Duty Casters

Medium Duty Casters Swivel and Rigid for OEM and Material Handling Applications and Total Lock Brake Swivel Casters

Quick Ship Casters at Bulk Price from our multiple Caster Distribution Centers

Part # Swivel/Rigid Wheel Size (Diameter x Tread Width), Wheel Material, Bearings, Color Capacity Overall Height Price Each
27PH34HB0317YY Swivel 3.25 in. x 2 in. Phenolic w/Straight Roller Bearings 600# 4-1/4 in. $26.00
28PH34HB0317YY Rigid 3.25 in. x 2 in. Phenolic w/Straight Roller Bearings 600# 4-1/4 in. $24.00
27PH40JB0417YY Swivel 4” x 2” Phenolic wheel w/ Roller Bearings; Black 800# 5-5/8 in. $23.00
27PH40JB0417TY Swivel w/ Top Lock Brake 4” x 2” Phenolic wheel w/ Roller Bearings; Black 800# 5-5/8 in. $26.00
28PH40JB0417YY Rigid 4” x 2” Phenolic Wheel Bearings; Black 800# 5-5/8 in. $22.00
DTPH40JB0417YY Swivel w/ Dual Pedal Total Lock 4” x 2” Phenolic Wheel Bearings; Black 800# 5-5/8 in. $38.00
27PH50JB0417YY Swivel 5” x 2” Phenolic wheel w/ Roller Bearings; Black 1,000# 6 -1/2 in. $26.00
27PH50JB0417TY Swivel w/ Top Lock Brake 5” x 2” Phenolic wheel w/ Roller Bearings; Black 1,000# 6 -1/2 in. $29.00
28PH50JB0417YY Rigid 5” x 2” Phenolic Wheel Bearings; Black 1,000# 6 -1/2 in. $25.00
DTPH50JB04177YY Swivel w/ Dual Pedal Total Lock Brake 5” x 2” Phenolic wheel w/ Roller Bearings; Black 1,000# 6 – 1/2 in. $40.00
27PH60JB0417YY Swivel 6” x 2” Phenolic wheel w/ Roller Bearings; Black 1,200# 7 -1/2 in. $28.00
27PH60JB0417TY Swivel w/ Top L Brake 6” x 2” Phenolic wheel w/ Roller Bearings; Black 1,200# 7 -1/2 in. $31.00
28PH60JB0417YY Rigid 6” x 2” Phenolic Wheel Bearings; Black 1,200# 7 -1/2 in. $27.00
DTPH60JB04177YY Swivel w/ Dual Pedal Total Lock Brake 6” x 2” Phenolic wheel w/ Roller Bearings; Black 1,200# 7 – 1/2 in. $43.00
6680-01-PHN Swivel 8” x 2” Phenolic wheel w/ Roller Bearings; Black 900# 9 -1/2 in. $34.00
6680-01-PHN-TLB Swivel w/ Top L Brake 8” x 2” Phenolic wheel w/ Roller Bearings; Black 900# 9 -1/2 in. $37.00
6680R-01-PHN Rigid 8” x 2” Phenolic Wheel Bearings; Black 900# 9 -1/2 in. $33.00
DTPH80JB04177YY Swivel w/ Dual Pedal Total Lock Brake 8” x 2” Phenolic wheel w/ Roller Bearings; Black 900# 9 – 1/2 in. $49.00

Wheel Options for Medium Duty Industrial Swivel and Rigid Caster

Dual Pedal

Dual Pedal Total Lock

We offer FAST shipping across the US! Contact us now to place an order

Source quality medium-duty casters from us.

MEDIUM-DUTY CASTERSMedium-duty casters are one of the most commonly used varieties. Popular applications include various carts, trucks, dollies, racks & equipment for industrial warehousing, as well as uses in hospitality, food service, food processing, and retail industries, along with endless medium-duty applications. There are dozens of wheels, bearings, brakes, and options to choose from. Some of our most popular options for medium-duty casters include the following:

  • Medium-Duty Stainless Steel Casters and Wheels — These are wash-down friendly. Popular applications include clean rooms, labs, medical & hospital facilities, animal cages, pharmaceutical plants, and autoclaves, as well as uses in industries such as food processing, bakeries, dairy, food service, and catering. Other uses include chemical factories, marine environments, fisheries, cruise ships, and high temp ovens. Capacity is 400 – 1,250 pounds and includes options such as industry-standard popular 4″ x 4.5″ top plate, 2″ wide-tread width wheels, and stainless bearings & Delrin bearings available.
  • Medium-Heavy-Duty Stainless Steel Kingpinless Casters and Wheels — These are for wet, damp, or harsh environment applications, including food processing plants, slaughter houses, fish hatcheries, and pharmaceutical laboratories. Capacity is 400 – 2,000 pounds with 4″ x 4.5″ top plates, 2″ tread width wheels, stainless steel rollers, and precision and plain-bore bearings available. We have a large selection of wheels & bearings for a range of applications.
  • Medium-Heavy-Duty Kingpinless Swivel Casters and Wheels — Popular applications include various carts, platform trucks, dollies, and racks used in both tow-line, motor-assisted, and manual applications in manufacturing, assembly & processing plants, and automotive plants, as well as uses for air cargo, ground support, freight terminals, warehousing, military, trash containers, tow-line, & shock-load applications. Capacity is 400 – 2,000 pounds with standard 4″ x 4.5″ top plates and 2″ wide-tread width wheels.

Discover Quality and Durability: A Tour of our Warehouse and our Industrial Casters!

Contact us now for your order!

"*" indicates required fields

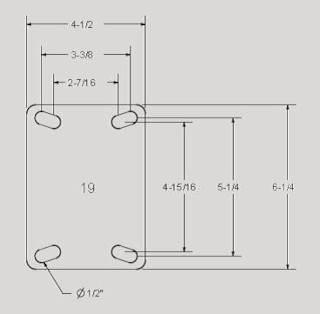

Caster Top Plate Options for Medium Duty Industrial Casters

We have many wheel and brake options for our medium duty casters.  These casters are our most popular size and capacity.  Plenty of stock on many different types of wheels to meet your applications.

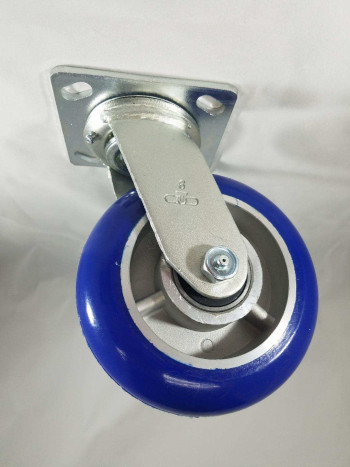

Our most popular medium duty to heavy duty caster right now is our round tread polyurethane on aluminum core swivel and rigid casters.  These casters have a large od precision ball bearing in the wheel to allow for easy rolling and easy turning for carts and buggies.  This is truly an ergonomic caster with extra benefits.

800 – 1,200 lbs. capacity    Available in 4″ x 2″, 5″ x 2″, 6″ x 2″ and 8″ x 2″ size wheels.  Non marking polyurethane wheels

High load capacity with quiet rolling capability.  95 Shore A Durometer.

Swivel Caster

Swivel Caster with welded on 4 Position Swivel Lock:  Adds $8.00 each to swivel caster price.

Position Swivel

Welded on 4 Position Swivel Lock adds $8.00 per swivel caster.

Foot Lock Options

Floor Locks

Corresponding Caster Size Lowered Height Extented Height Part Number Price Each
4 4 – ¾” 6” FL-4 $24.00
5 5 – ½” 6 – ½” FL-5 $24.00
6 6 – ¾” 7 – ¾” FL-6 $26.00
8 8 – 5/8” 9 – 5/8” FL-8 $26.00

Learn more about our medium-duty casters and place your next order by contacting us at Heavy Duty Casters today.
