When it comes to industrial applications, it’s important to choose casters that are strong, durable, and capable of handling heavy loads. Dual wheel extreme heavy-duty swivel and rigid casters from Heavy-DutyCaster.com provide the ultimate solution for heavy-duty industrial applications.
Here are the top 5 benefits of using these casters:
- Increased Load Capacity – With their heavy-duty construction and dual wheel design, dual wheel extreme heavy-duty swivel and rigid casters are capable of handling extremely heavy loads. This makes them ideal for use in industries such as construction, mining, and manufacturing.
- Improved Stability – The dual wheel design provides increased stability, reducing the risk of equipment tipping or overturning. This is especially important in applications where safety is a concern, such as when transporting hazardous materials.
- Enhanced Maneuverability – The swivel design of these casters makes them highly maneuverable, allowing for easy movement in tight spaces. This improved mobility helps to increase efficiency and reduce downtime in industrial applications.
- Durability – Heavy Duty Casters’ dual wheel extreme heavy-duty swivel and rigid casters are built to last, with high-quality materials and construction methods that ensure long-lasting performance.
- Versatility – These casters are available in a variety of sizes and styles, making them suitable for a range of applications. Whether you need casters for a heavy-duty cart or a piece of machinery, we have the perfect solution to meet your needs.
In conclusion, dual wheel extreme heavy-duty swivel and rigid casters from Heavy-DutyCaster.com offer a wide range of benefits for industrial applications. With their increased load capacity, improved stability, enhanced maneuverability, durability, and versatility, these casters provide the ultimate solution for heavy-duty industrial needs. If you’re looking for high-quality heavy-duty casters, consider Heavy-DutyCaster.com for your next project.
Top Plate Sizes for Extreme Dual Wheel Casters

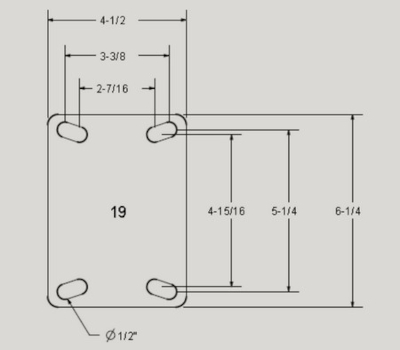

D1 / R1 SERIES 19 TOP PLATE
Dual Wheel Swivel w/ Ergolastomer wheels
Dual Wheel Rigid w/ Phenolic wheels
Heavy duty tapered roller bearings
Dual Wheel Swivel Titan Poly on Cast Iron
Face Contact Brake Installed
Dual Wheel Swivel w/ Ductile Steel Wheels
Extreme-Heavy-Duty Dual Wheel Kingpinless Casters and Wheels
ASTM 1045 steel w/ large drop forged top plates, raceways, and legs.
Ideal for tow line & shock loads, production dollies & trucks, boat & ship construction, metal fabrication, automotive, aerospace, heavy machinery, mobile home, air cargo, transport vehicles, storage tanks, gantry cranes, heavy-duty processing equipment, machinery moving, & rigging equipment.
Capacity 1,600 – 40,000 pounds. 2″, 3″, & 4″ wide dual wheels.
D1 Series Dual Wheel Heavy Duty Casters have 5/16” thick top plate hot-forged ASTM1045 steel with 3” diameter precision machined raceway with ½” ball bearings. Grease fitting on swivel raceway and axles.
½” CNC machined grade 5 zerk axle and nut with zinc-plated caster finish. Up to 6,000 lbs. capacity

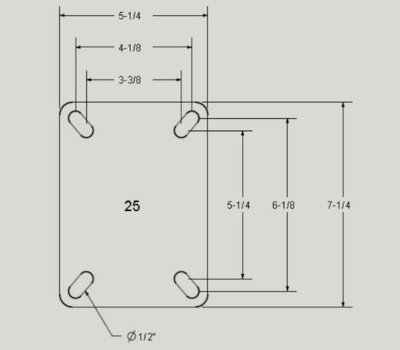

D2 Series Dual Wheel Extreme Heavy-Duty Casters have 5/16” thick top plate hot forged ASTM1045 steel with 3” diameter precision machined raceway with ½” hardened ball bearings. Grease fitting on swivel raceway and axles.
Double welded 3/8” thick legs welded to swivel race.
3/4” CNC machined grade 8 zerk axle and nut with zinc-plated caster finish. Up to 7,000 lbs. capacity

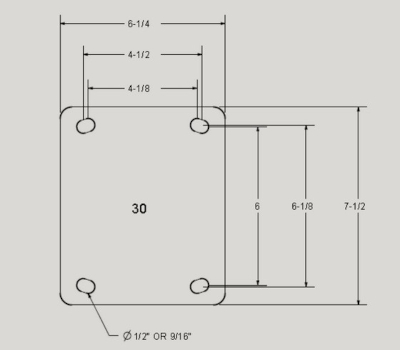

D3 Series Dual Wheel Extreme Heavy-Duty Casters have 1/2” thick top plate drop-forged ASTM1045 steel with 4.5” diameter precision machined raceway with 5/8” hardened ball bearings. Grease fitting on swivel raceway and axles.
Double welded 3/8” thick legs welded to swivel race.
3/4” CNC machined grade 8 zerk axle and nut with zinc-plated caster finish. Up to 20,000 lbs. capacity

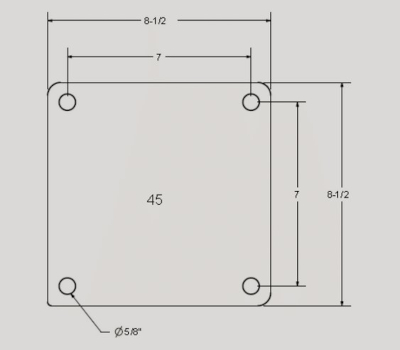

D4 Series Dual Wheel Extreme Heavy-Duty Casters have 5/8” thick top plate drop-forged ASTM1045 steel with 7” diameter precision machined raceway with 3/4” hardened ball bearings. Grease fitting on swivel raceway and axles.
Double welded 1/2” thick legs welded to swivel race.
1.25” CNC machined grade 8 zerk axle and nut with zinc-plated caster finish. Up to 40,000 lbs. capacity
